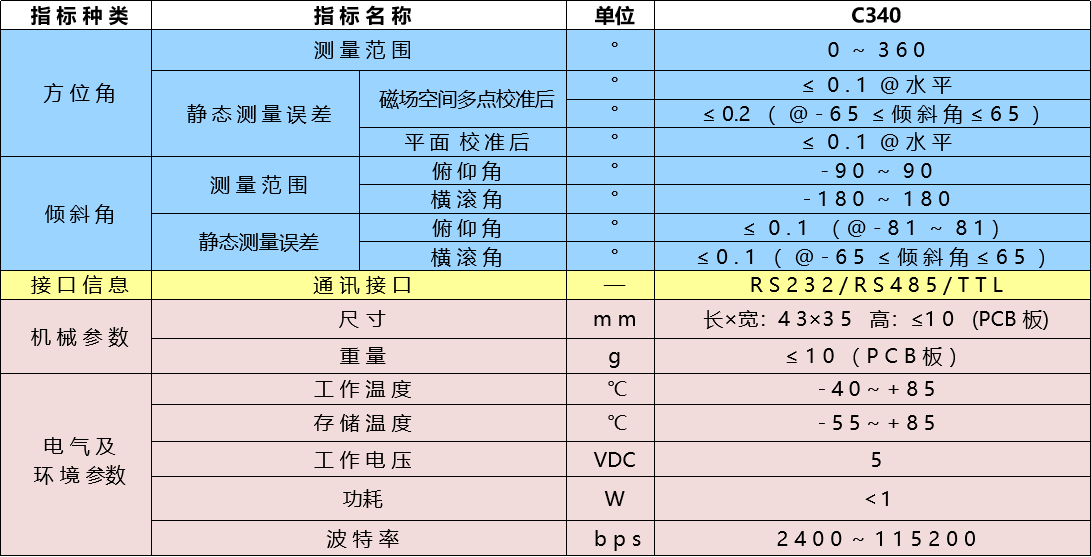

The C340 product is a high-precision, low-power digital magnetic compass that integrates a three-axis magnetic sensor, a three-axis acceleration sensor, and a temperature sensor. It adopts self-developed spatial calibration technology and can quickly calibrate the magnetic interference that is widely present on user equipment. After successful calibration, It can output high-precision azimuth, pitch, roll Angle, as well as temperature, three-axis magnetic field, three-axis acceleration and other data. In addition, it is equipped with a built-in geomagnetic field model that can automatically calculate the local magnetic declination based on the input longitude, latitude and time information, achieving automatic conversion between magnetic north and true north. It can provide multiple baud rates and different output modes for users to choose from. It features high precision, small size and low power consumption, and can meet users' application requirements such as orientation and pose measurement.
Typical applications：
a. Aircraft - various fixed-wing aircraft and helicopters;
b. Ships - Various types of ships;
c. Unmanned systems - unmanned underwater vehicles (UUV), unmanned aerial vehicles (UAV), etc.
d. Handheld viewing and aiming system
e. Underwater towing cable attitude measurement system.
C340 ADAPTS to magnetic interference scenarios of both large and small devices through its self-developed spatial calibration technology and four types of calibration methods.
It outputs true north azimuth, attitude Angle and multi-sensor data, featuring small size, low power consumption and high precision.
