The MA760 MEMS attitude reference system product is an attitude and heading reference system (AHRS), suitable for carriers such as aircraft, vehicles, robots, surface vehicles, and underwater vehicles, and can measure attitude, heading and other information. The system integrates multiple sensors such as gyroscopes, accelerometers, and magnetic compasses internally. It adopts a high-performance, compact MCU and has an adaptive wide power input, allowing for the connection of external auxiliary information from odometers. By running an enhanced integrated navigation algorithm and fusing information from gyroscopes, accelerometers, magnetic compasses, etc., it can provide extremely superior attitude, heading and heave data in the most challenging environments.
Application field：
Aviation: Unmanned aerial vehicles, airships and other flight carriers.
Navigation: ships, unmanned surface vehicles, buoys, oil platforms and other waterborne carriers.
Land: Unmanned vehicles, special vehicles, robots and other carriers.
1. Strong adaptability: Silicon micro MEMS devices have strong resistance to vibration and shock, and can operate at full temperatures ranging from -40℃ to +85℃.

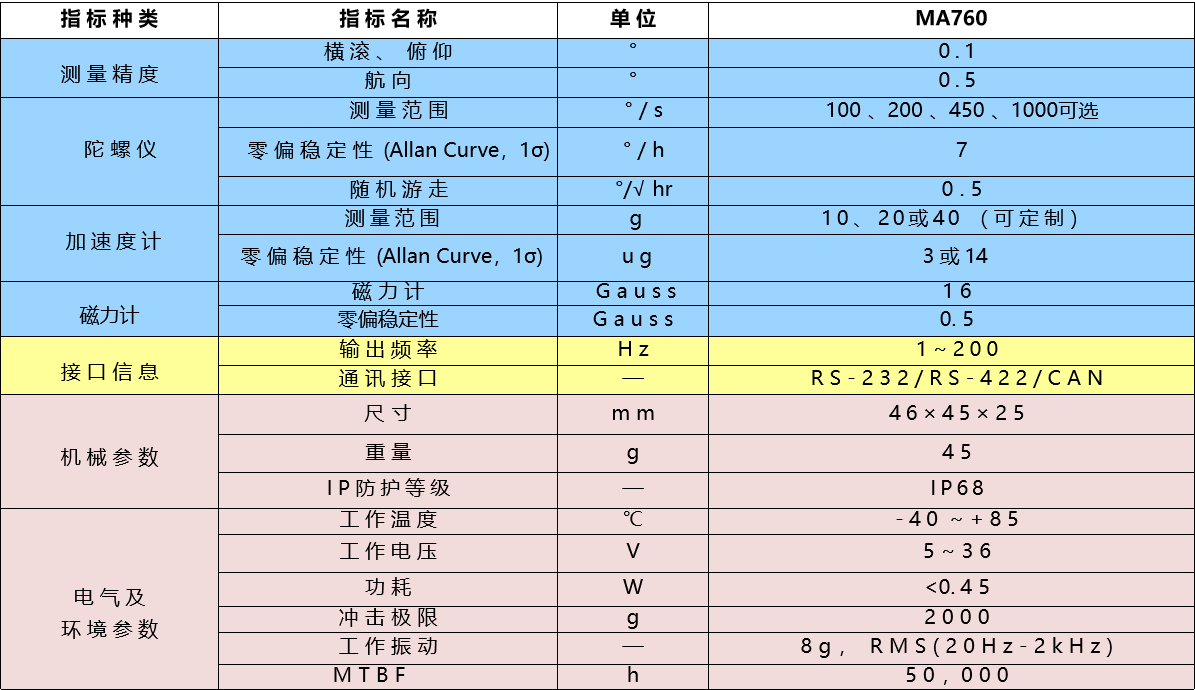

2. Excellent performance indicators: Horizontal attitude 0.1°(RMS), azimuth accuracy 0.5°, real-time heave 5cm, small size and light weight.
3. Good user experience: Supports multiple serial ports such as RS-422 and RS-232, adjustable output bandwidth, adjustable output protocol, online upload of programs/parameters, and power supply ranging from 5V to 36V.
4. The maximum frequency of data output is 200Hz.
