The C360 product is an electronic compass, a high-performance three-dimensional full-attitude electronic compass. It uses a three-axis accelerometer to compensate for the tilt Angle and employs advanced hard magnetic and soft magnetic calibration algorithms, enabling it to provide high-precision heading information within the range of ±180° roll Angle and ±90° pitch Angle. This electronic compass features a compact size and high precision. All components are integrated within a space of 116mm×21mm×20mm, with an overall weight of less than 60 grams. It is equipped with multiple external interfaces such as RS422/232/485/TTL, offering excellent expandability.
Typical applications：
a. Aviation: Unmanned aerial vehicles, airships and other flight carriers;
b. Navigation: ships, unmanned surface vehicles, buoys, oil platforms, underwater vehicles and other carriers;
c. Land: Unmanned vehicles, special vehicles, robots and other carriers;
d. Exploration: Petroleum exploration, mining, geological exploration.
1.Strong anti-interference ability: Advanced hard magnetic and soft magnetic calibration algorithms are adopted, enabling it to provide high-precision heading information within the range of ±180° roll Angle and ±90° pitch Angle.

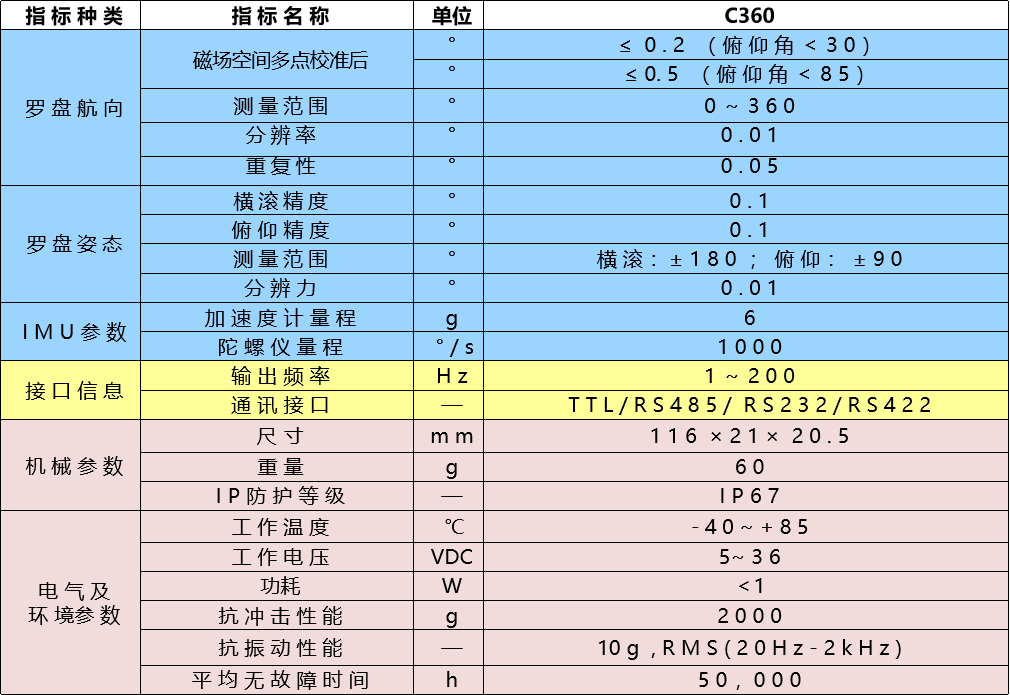

2. Outstanding performance indicators: Horizontal attitude measurement accuracy is 0.1°(RMS), azimuth accuracy can reach 0.2°(RMS), small in size and light in weight.
3. Wide operating range: Utilizing silicon micro MEMS devices, it can operate within a wide temperature range of -40℃ to +85℃, support power supply from 5V to 36V, and have a maximum current of less than 20mA.
4.
Good user experience: Supports RS422/RS232/RS485/TTL interfaces, system parameters can be set through the upper computer, output bandwidth is adjustable, output protocol is adjustable, and online program upgrade is supported.
