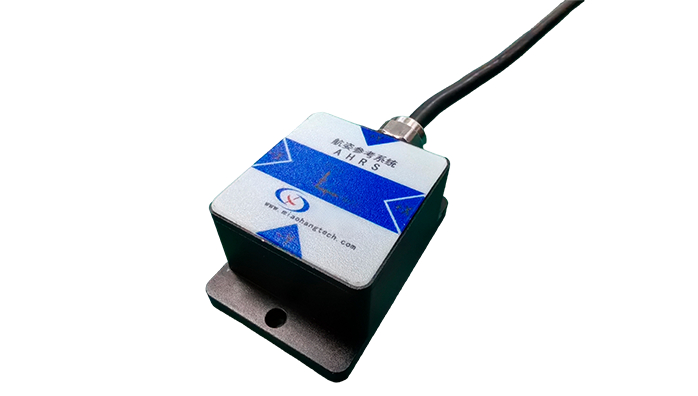

The MA300 attitude measurement system is suitable for carriers such as aircraft, vehicles, robots, and surface vehicles. It can measure attitude, heading and other information. The system integrates motion sensors such as a three-axis gyroscope, a three-axis accelerometer, a three-axis electronic compass, and a barometric pressure sensor. By integrating various high-performance sensors and applying the self-developed core algorithm engine of attitude dynamics, Combining the high-dynamic Kalman filter fusion algorithm, we provide customers with high-precision, high-dynamic, and real-time compensated three-axis attitude angles. Through flexible selection and configuration of various data, we meet different application scenarios.
Application field：
Aviation: Unmanned aerial vehicles, airships and other flight carriers.
Navigation: ships, unmanned surface vehicles, buoys, oil platforms and other waterborne carriers.
Land: Unmanned vehicles, special vehicles, robots and other carriers.
1. Wide application range: It is not only suitable for use in open areas, but also for complex environments such as indoors, on streets, in jungles, underground, and underwater.
2. Strong adaptability: Silicon micro MEMS devices have strong resistance to vibration and shock, and can operate at full temperatures ranging from -40℃ to +85℃.
3. Excellent performance indicators: Horizontal attitude accuracy 0.05°(RMS), azimuth holding accuracy 4°/h(pure inertial state), small size and light weight.
4. Good user experience: Supports RS485, RS-422, and RS-232, with adjustable output bandwidth and frequency, adjustable output protocol, and supports online upload of programs/parameters.
5. The maximum output frequency is 200Hz.
