The WX210 product is a high-performance dual-antenna positioning and orientation system, integrating multiple sensors such as temperature sensors, barometers, and satellite receivers internally. It can also receive information from satellite differential system reference stations and output navigation information such as carrier position, speed, and heading. It is suitable for carriers such as vehicles, aircraft, robots, and surface vehicles.
1. Wide application range: It adopts a four-mode satellite navigation system of GPS/BD2/GLONASS/ GALILEO, featuring high tracking sensitivity.
2. Strong adaptability: Working in full temperature range from -40℃ to +85℃.

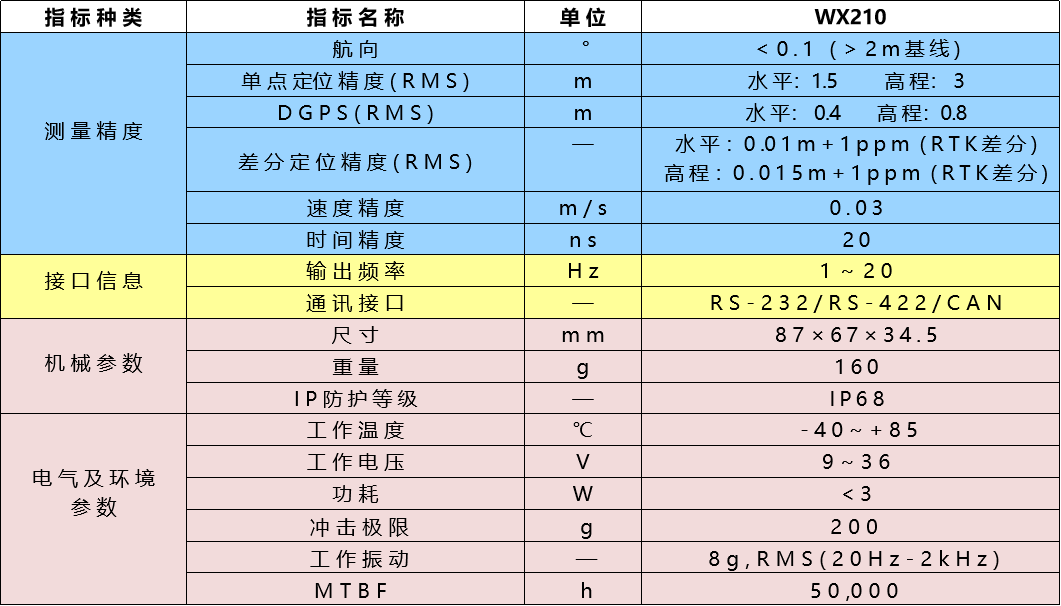

3.Outstanding performance indicators: Azimuth accuracy 0.1°(2m baseline), position 0.01m (RTK differential), speed better than 0.05m/s(RMS), small size and light weight.
4. Good user experience: Supports multiple serial ports such as RS-422 and RS-232, adjustable output bandwidth, adjustable output protocol, online upload of programs/parameters, and power supply ranging from 9V to 36V.
